High-speed Mixer designed to generate heat due to friction. The high-speed Mixers are used to mix granules with pigment paste or pigment powder or different colored granules for uniform blending. The high-speed mixer achieves heat while working is important to blend the pigment paste and polymer powder uniformly.
High-Speed Mixer:

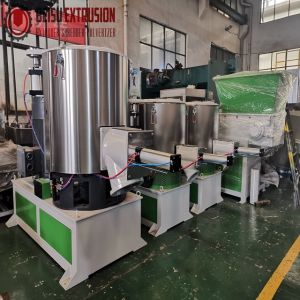

A1: A complete range of fully automatic high-speed mixer unit for the production of both rigid and plasticized PVC dry blends.
A2:The compact unit is monoblock construction.

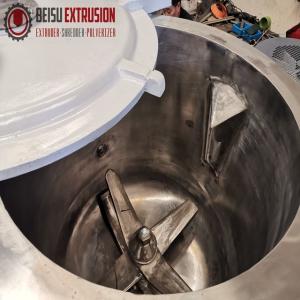

A3: A unique mixing impeller using aerodynamic principles gives a rigid mixing action and fast frictional heating.
A4:Inner stainless steel and conduction oil jacket to attain equilibrium temperature.
A5:The impeller is made of stainless steel and passed the strictly Static and dynamic balance experiments.
A6:The discharging mode adopts temperature-automatic control and manual control.
A7:The technique of two layers of sealing a adopted in its pot cover. It has self-friction heating and electric heating modes.
| Model | Capacity(L) | Motor power(kw) | Mainshaft speed rpm(r/min) | Heating method | Gischarge method |
| SHR-5A | 5 | 2.2 | 600-3000 | Electrical steam | Hand work |
| SHR-10A | 10 | 3 | 600-3000 | ||
| SHR-50A | 50 | 7/11 | 750/1500 | Pneumatics | |
| SHR-100A | 100 | 14/22 | 650/1300 | ||
| SHR-200A | 200 | 30/42 | 575/1050 | ||
| SHR-300A | 300 | 40/55 | 625/1100 | ||
| SHR-500A | 500 | 47/67 | 500/1000 | ||
| SHR-800A | 800 | 60/90 | 370/740 |
| Model/Specs | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 | |
| Total Cubage (L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 | |
| Effective Cubage (L) | 65/130 | 150/620 | 225/380 | 375/650 | 600/1050 | |
| Mixed Speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 | |
| Heating&Cooling Manner | Electric Heating, Self-friction/water-cooling | |||||
| Mixed Time(min) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | |
| Motor Powder(KW) | 14/22/7.5 | 30/42/11 | 40/55/11/ | 47/67/15 | 60/90/22 | |
